Kilvington IP Phones

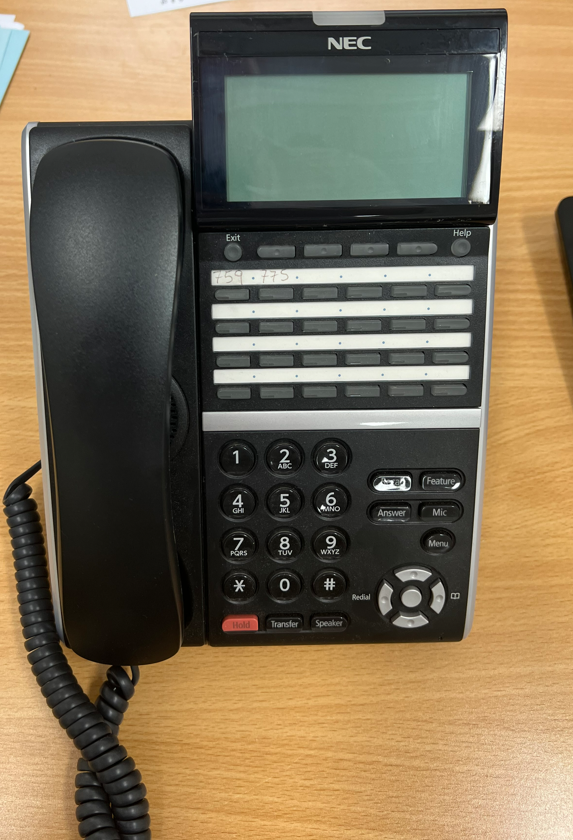

The IT and Marketing teams locate at Kilvington Drive use NEC DT800 IP handsets as desk phones

These phones are connected to the core switch stack in the Kilvington comms rooms and are configured to use VLAN mode on both the LAN and PC ports.

The phones are provided with an IP address via the DHCP server located on pbr-wsus-kl1.

The reason the handsets operate in VLAN mode is due to a bug with Cisco SG300 switches which causes the core stack to reboot in certain scenarios when using LLDP.


Configuring an NEC Handset to use VLAN Mode at Kilvington Drive

Before following these steps ensure that the associated switch port has been tagged for VLANS 100 and 134.

  1. Press the Menu key. (Note if the phone is first booting up you may have to wait 20 seconds before you can get into setup.) If the phone is already booted up you will have to press the Menu key and dial (0) on the key pad.

  2. When prompted for credentials, enter the credentials below and press the OK key:

    User name: ADMIN
    Password:  6633222

  3. Press 1 to get into Network Settings and then 6 for Advanced Settings
  4. Press 1 for LAN Port Settings and 2 for VLAN Mode
  5. Select Enable and press the OK key:
  6. Press 3 for VLAN ID
  7. Enter 100 and press the OK key
  8. Press the Exit key
  9. Press 2 for PC Port Settings and 2 for VLAN Mode
  10. Select Enable and press the OK key:
  11. Press 3 for VLAN ID
  12. Enter 134 and press the OK key
  13. Press the Exit key
  14. Keep pressing Exit and then select Save when it is displayed. The handset will reboot.

The phone has now been configured to use VLAN mode with the correct VLAN IDs.
