Node-Red Configuration

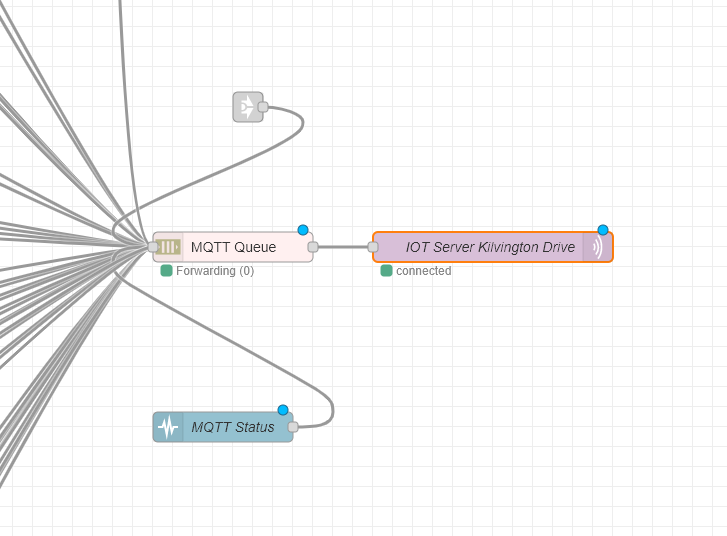

Node-red allows MQTT messages to be published to the Kilvington

They are typically configured as per the below.


IOT Server Node

The IOT Server Node defines the connection back the the Kilvington Thingsboard server.

When the connection is working it will display the connected message underneatth


The node is configured as per the below


The Topic field is the default topic for Thingsboard



The Username field corresponds with the Access Token attribute in the Thingsboard device configuration






Troubleshooting











In the event that the MQTT Queue node is set to Storing instead of forwarding, this would indicate the the MQTT Status node is failing a check.
