LME Configuration

Full LME Documentation can be found at CISA LME Documentation

PBR is utilizing LME to centralize the logs from all windows based devices (Servers & Workstations) to a single server where detailed analysis can be undertaken through the use of dashboards and summarized data

• LME ELK Server  - LME-PBR-KL1

  • This server is used for storing and analyzing the collected logs
  • O/S - Ubuntu

• LME Event logging Server  - PRTG-PBR-KL1

  • This server collects and forwards the logs from the client computers to the ELK server
  • O/S - Windows 10

• LME Clients

  • All devices that are configured for monitoring
  • O/S - Windows devices

There are 2 Group Policy Objects (GPO's)

LME-WEC-Client - This GPO forwards event logs from the client computer to the Event Logging Server

This GPO is linked to the OU Laptops & Desktops. Devices in these OU's will have their events forwarded to the event logging server

LME-WEC-Server - This GPO enables the Windows Remote Management Service (WinRM) to automatically listen on the network for requests on port 5985 from IP address range 192.168.134.1 - 192.168.134.254

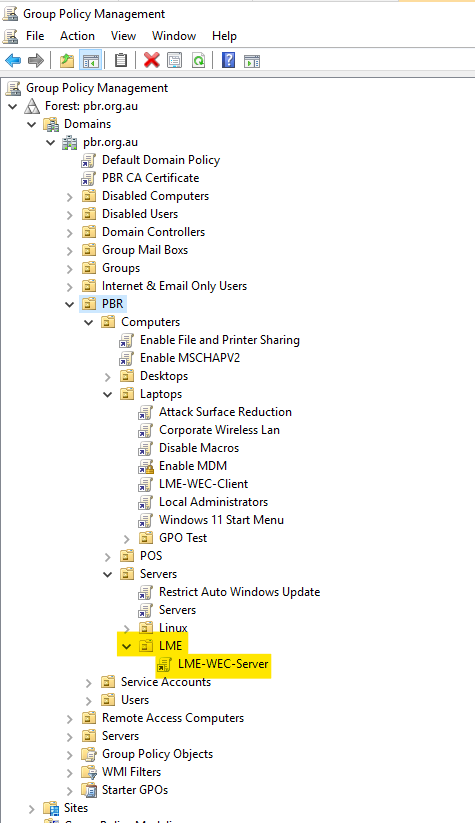

This GPO is linked to the OU LME, which is located under PBR\Computers\Servers. The only computer in this OU is the LME Server

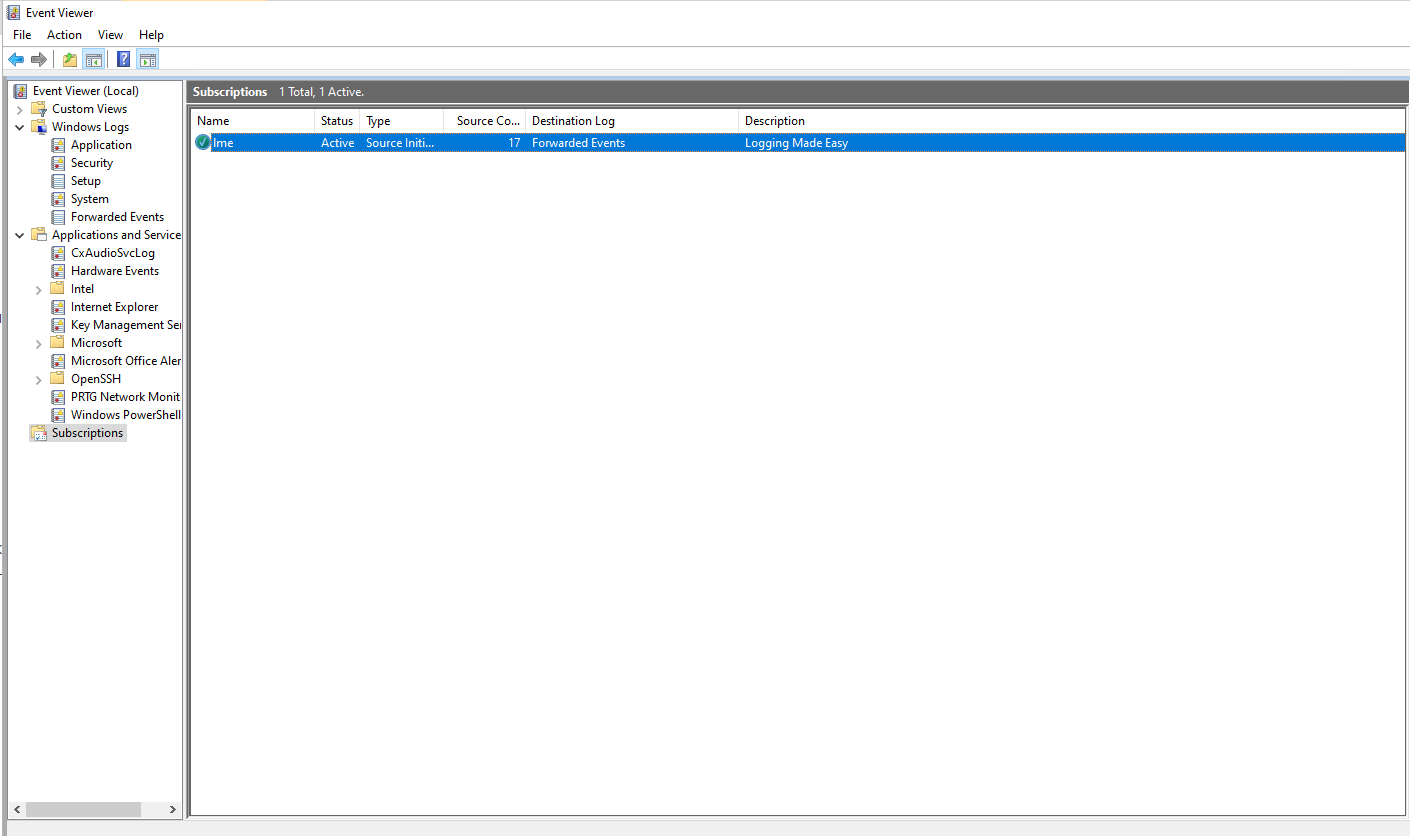

On the Event Logging Server (prtg-pbr-kl1) you can view the number of connect devices (computers that are having events forwarded to the Event Logging Server) by going to Event Viewer, and selecting subscriptions

All collected logs from the client computers are located in the Forwarded Events section listed under Windows Logs in the event viewer on prtg-pbr-kl1

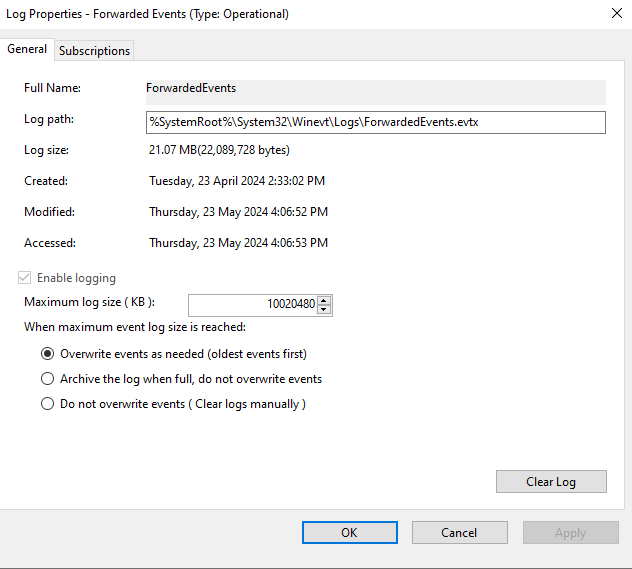

Current log size on prtg-pbr-kl1 is 10GB

Full LME Documentation can be found at CISA LME Documentation

Still to be documented

Are we adding the servers?  Can we collect ubuntu logs?

Sysmon purpose & config

Dashboards & reporting
