Generators

At PBR we have multiple generators scattered around the sites

Kilvington Rd & Belgrave are both network connected and can provide email alerts

• Kilvington Rd Generator

Kilvington Rd Generator

The Kilvington Rd generator is network connected with a static IP address of 192.168.134.21

You can access the settings and configuration via a web browser http://192.168.134.21/

Access Code for web portal is in 1Password

You can also access the setting and configuration via InteliConfig software installed on a Windows PC. This can be downloaded from https://www.comap-control.com/

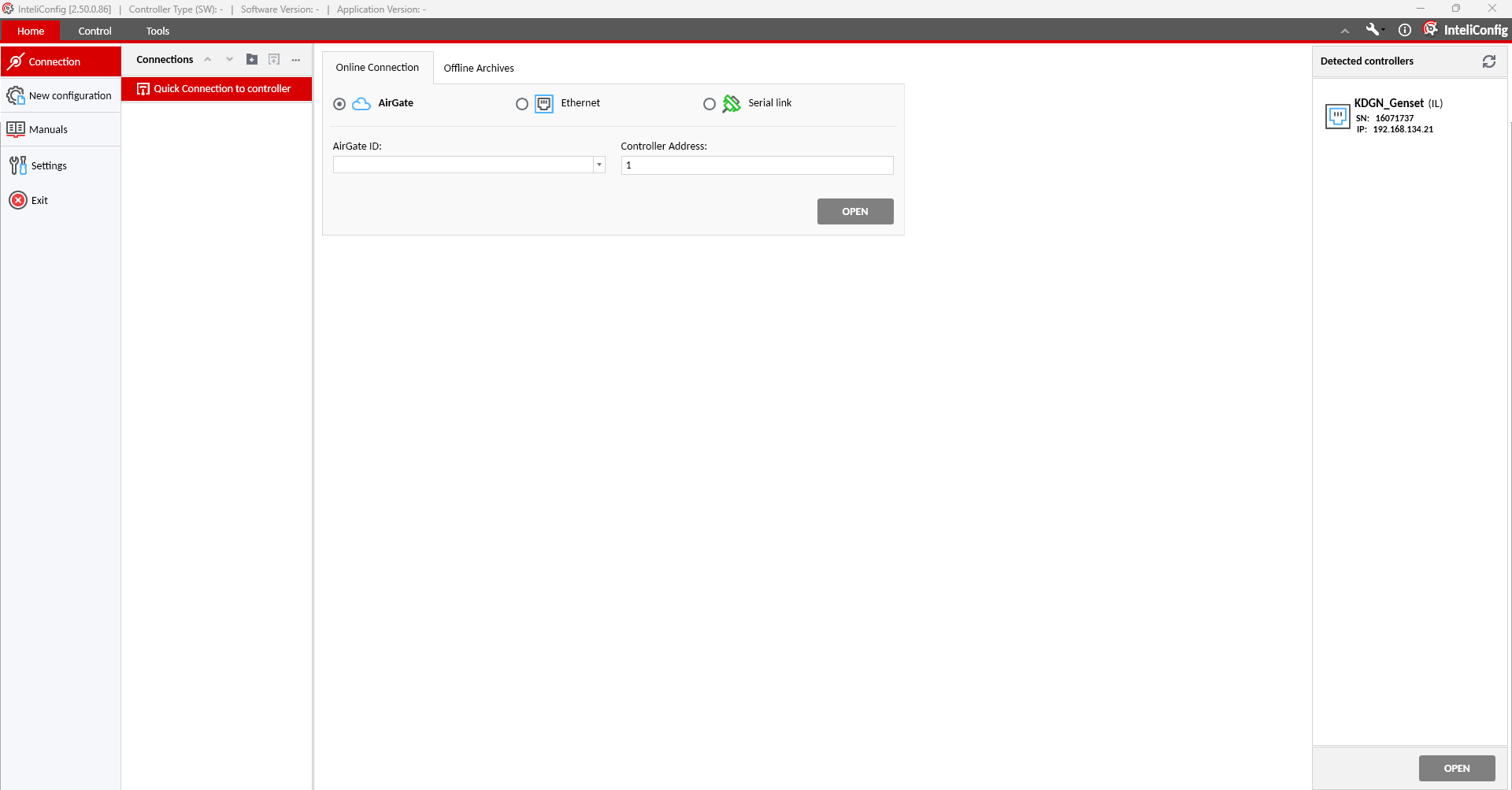

Open the InteliConfig Application, select Connect To Controller

In the RHS window you should see KDGN_Genset, select it and click open, enter the password (in 1Password and is the same as above) for web browser access

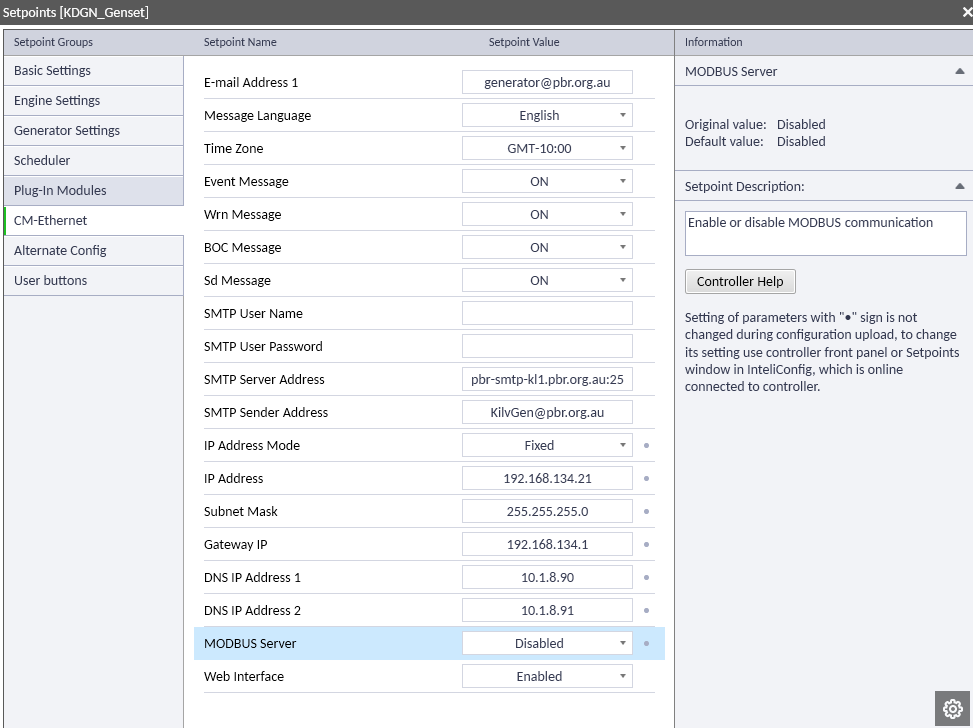

If you need to find the SMTP or Network settings, navigate to SetPoints Tab, then select CM-Ethernet, and scroll down

Currently configured to send alerts via email to generator@pbr.org.au, which is setup as a shared mailbox

All emails sent to this mailbox are now forwarded to helpdesk@pbr.org.au

Alternatively you can connect to the Generator via USB Cable, using the InteliConfig Software

The USB port is located behind the LCD screen, so firstly you need to unlock the hatch covering the screen (keys in comms room), then you need to unscrew the 2 knobs to the RHS of the screen, the whole panel is hinged on the left and will swing open..   (be careful in there) plug in the usb cable and run the software on laptop and you should have access.

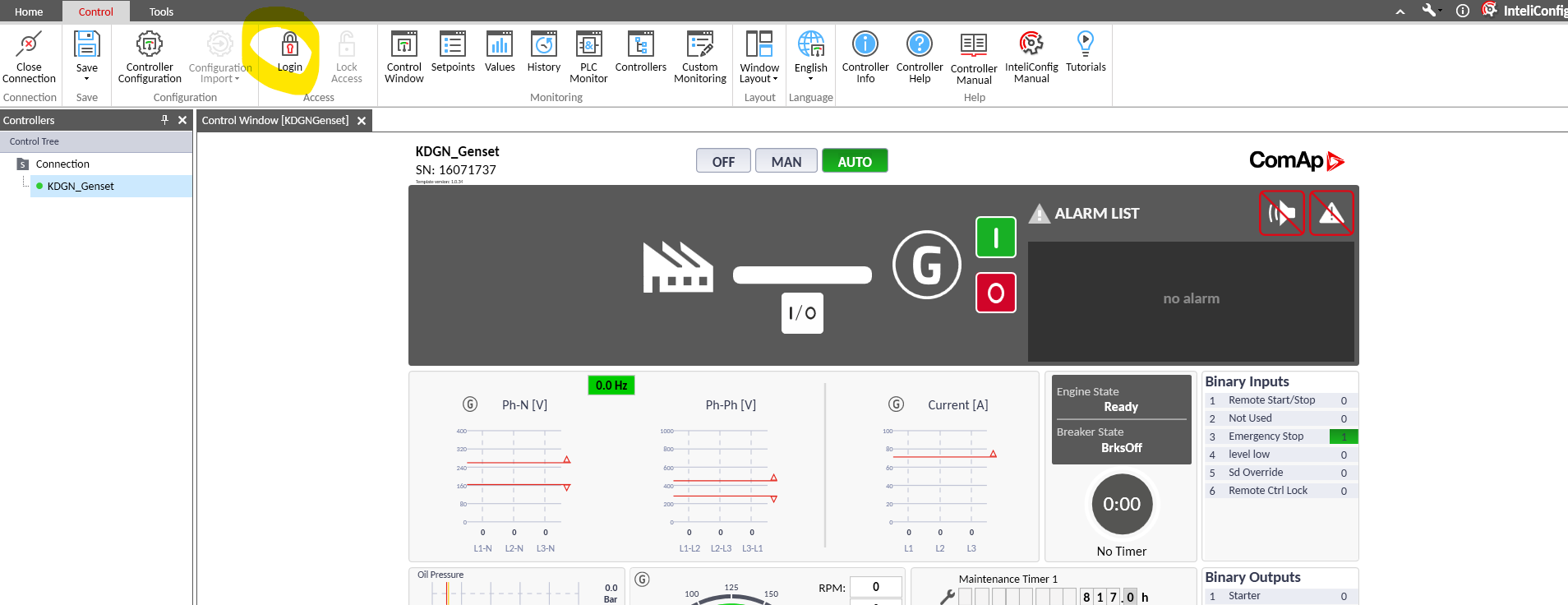

The administrator and user passwords are the same, to get edit or modify capabilities in the software, you will need to click login and enter the password in 1Password
